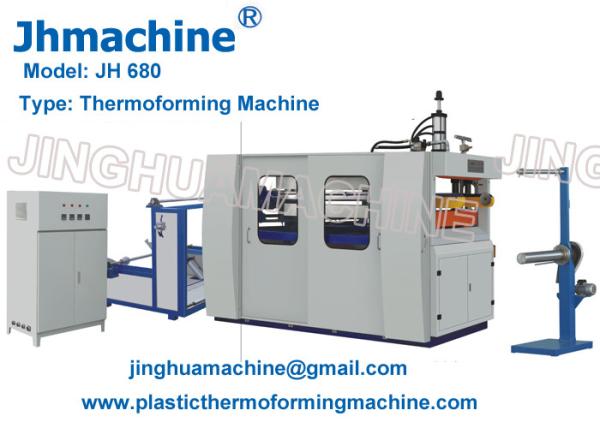

Cam Type Plastic Thermoforming Machine for Cups and Trays

Product Categories

Jinghua Machinery Co.,Limited

Contact Now

Cam Type Plastic Thermoforming Machine for Cups and Trays

Brand Name : JH

Model Number : JH680

Certification : CE

Place of Origin : WENZHOU

MOQ : 1 set

Price : USD 22000-25000

Delivery Time : 40 Workding day

Packaging Details : plywood case for exportation

Material : PP,PS,PET.PE.ABS

Sheet Width : 500*650mm

Thickness : 0.2-2.5mm

Max Forming Area : 650*270mm

Max Forming depth : 140mm

capacity : 10-35 cycles

Contact Now

APPLICATION:

This thermoforming Machine Can produce various kind of disposable plastic cup, plastic containers of cooling drinks, sour milk, ice-cream, fast food, or instant noodle, as well as different kinds of merchandise packages of medicine, toy, journal. textile and light industry, etc.

SPECIFICATIONS:

Sheet Materials	PP.PS.PET.PE.ABS
Sheet Width	500-650mm
Sheet Thickness	0.25-2.5mm
Max. Forming Area	620x270mm
Max. Forming depth	140mm
Forming Pressure	0.5-0.8Mpa
Productivity	10-35 mould/min
Rated Heading Power	67Kw
Starting Power	70K w
Total Weight	4.5ton
Water Temperature	>30℃
Overall Dimensions	3300x1500x 2200 mm

Wholesale Cam Type Plastic Thermoforming Machine for Cups and Trays from china suppliers

Cam Type Plastic Thermoforming Machine for Cups and Trays Images
